A-A-52412 Inclinometer, Ball StyleThis CID covers two types of ball-style inclinometer which are used to indicate the attitude of the vehicle with respect to the horizontal.

Pages 1 - 2 - 3 - 4 - 5 - 6


A-A-52412A
Type I
Type II
Type
PIN
Former Part Number
I
A 52412-1
12265593
II
A 52412-2
12265594
Note:
1. Envelope tolerances are shown in maximum dimensions except for mounting holes
which shall be specified in envelope.
2. Inclinometer in envelope drawings are shown for reference purposes only.
3. Dimensions are in inches DO NOT SCALE.

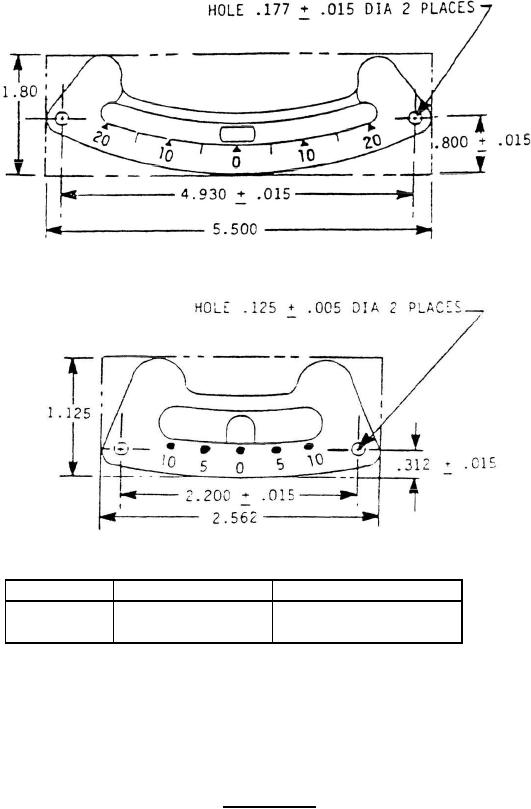

Figure 1. Inclinometer.
6
